产品介绍
|

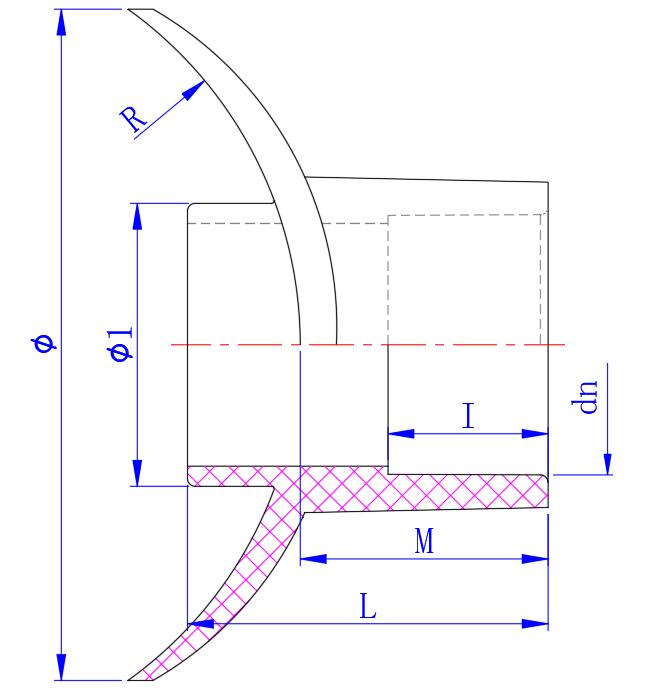

公称通径
DN
|
Dn
|
L
|
I
|
M
|
Φ1
|
Φ
|
R
|
|
65✕20
|
25
|
40
|
19
|
28
|
32
|
72
|
37.5
|
|
65✕25
|
32
|
44
|
22
|
32
|
35
|
72
|
37.5
|
|
65✕32
|
40
|
50
|
26
|
36
|
42
|
72
|
37.5
|
|
80✕20
|
25
|
40
|
19
|
28
|
32
|
85
|
45
|
|
80✕25
|
32
|
44
|
22
|
32
|
35
|
85
|
45
|
|
80✕32
|
40
|
50
|
26
|
36
|
45
|
85
|
45
|
|
80✕40
|
50
|
57
|
31
|
41
|
50
|
85
|
45
|
|
100✕20
|
25
|
43
|
19
|
30
|
32
|
100
|
55
|
|
100✕25
|
32
|
47
|
22
|
33.5
|
35
|
100
|
55
|
|
100✕32
|
40
|
53
|
26
|
37.5
|
45
|
100
|
55
|
|
100✕40
|
50
|
60
|
31
|
42
|
55
|
100
|
55
|
|
100✕50
|
63
|
70
|
38
|
49
|
65
|
100
|
55
|
|
125✕20
|
25
|
45
|
19
|
28.5
|
32
|
125
|
70
|
|
125✕25
|
32
|
50
|
22
|
33
|
35
|
125
|
70
|
|
125✕32
|
40
|
56
|
26
|
37.5
|
45
|
125
|
70
|
|
125✕40
|
50
|
65
|
31
|
44.5
|
55
|
125
|
70
|
|
125✕50
|
63
|
74
|
38
|
50
|
70
|
125
|
70
|
|
150✕20
|
25
|
48
|
19
|
29.5
|
32
|
130
|
80
|
|
150✕25
|
32
|
52
|
22
|
33.5
|
35
|
130
|
80
|
|
150✕32
|
40
|
60
|
26
|
40
|
45
|
130
|
80
|
|
150✕40
|
50
|
67
|
31
|
45.5
|
55
|
130
|
80
|
|
150✕50
|
63
|
75
|
38
|
50
|
70
|
130
|
80
|
|
200✕20
|
25
|
50
|
19
|
29
|
32
|
140
|
112.5
|
|
200✕25
|
32
|
55
|
22
|
34
|
35
|
140
|
112.5
|
|
200✕32
|
40
|
63
|
26
|
41
|
45
|
140
|
112.5
|
|
200✕40
|
50
|
70
|
31
|
47
|
55
|
140
|
112.5
|
|
200✕50
|
63
|
78
|
38
|
53
|
70
|
140
|
112.5
|
|
250✕20
|
25
|
60
|
19
|
29
|
32
|
150
|
140
|
|
250✕25
|
32
|
65
|
22
|
34
|
35
|
150
|
140
|
|
250✕32
|
40
|
73
|
26
|
41.5
|
45
|
150
|
140
|
|
250✕40
|
50
|
78
|
31
|
46
|
55
|
150
|
140
|
|
250✕50
|
63
|
88
|
38
|
54
|
70
|
150
|
140
|
|
300✕20
|
25
|
60
|
19
|
29.5
|
32
|
160
|
157.5
|
|
300✕25
|
32
|
65
|
22
|
34
|
35
|
160
|
157.5
|
|
300✕32
|
40
|
73
|
26
|
41.5
|
45
|
160
|
157.5
|
|
300✕40
|
50
|
78
|
31
|
46
|
55
|
160
|
157.5
|
|
300✕50
|
63
|
88
|
38
|
54
|
70
|
160
|
157.5
|
|
200✕40
|
50
|
70
|
31
|
47
|
55
|
124
|
112.5
|
|
200✕50
|
63
|
78
|
38
|
53
|
70
|
124
|
112.5
|
|
250✕40
|
50
|
78
|
31
|
46
|
55
|
130
|
140
|
|
250✕50
|
63
|
88
|
38
|
54
|
70
|
130
|
140
|
|
125✕1-1/2"
|
48
|
65
|
31
|
44.5
|
55
|
125
|
70
|
|
125✕2"
|
60
|
74
|
38
|
50
|
70
|
125
|
70
|
|
150✕1-1/2"
|
48
|
67
|
31
|
45.5
|
55
|
130
|
80
|
|
150✕2"
|
60
|
75
|
38
|
50
|
70
|
130
|
80
|
|
200✕1-1/2"
|
48
|
70
|
31
|
47
|
55
|
140
|
112.5
|
|
注：DN600 - 350各规格马鞍接头按实际用途设计尺寸制造。
|
